Stainless Steel Submersible Sewage Pumps

Submersible Stainless Steel Sewage Pumps



Precision-cast entirely from stainless steel, the smooth surface resists scale buildup. A built-in thermal protector in the motor automatically cuts power during dry-running or overload, ensuring safety and easy maintenance



WQ-B
WQ-BS
WQ

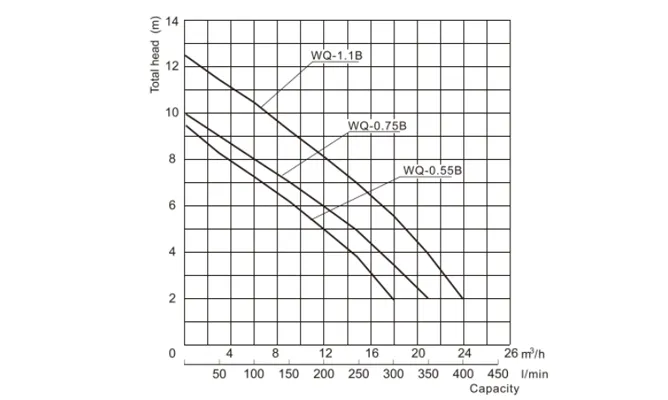

Specifications of WQ-B Submersible Stainless Steel Sewage Pump

Vortex impeller submersible pumps made of stainless steel AISI 304, designed for dirty waters containing organic solids. The particular shape of the impeller allows the free passage of solid materials up to 50 mm diameter. Suitable to lift dirty waters and empty cesspits.

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	I/min	0	50	100	150	200	250	300	350	400
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	3	6	9	12	15	18	21	24
WQ-0.55B	220V,50Hz	0.55KW	16μf	38mm	H(m)	9.5	8	7	6.2	5	3.8	2
WQ-0.75B	220V,50Hz	0.75kW	25μf	38mm		10	9	8	7	6	5	3.5	2
WQ-1.1B	220V,50Hz	1.1kW	30μf	38mm		12.5	11.5	10.5	9	8	7	5.5	4	2

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	I/min	0	100	200	300	400	500	600	700	800
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	6	12	18	24	30	36	42	48
WQ-1.5B	220V,50Hz	1.5kW	30μf	50mm		14	12.5	11	9	7	4
WQ-2.2B	380V,50Hz	2.2kW	/	50mm		15.5	14.5	13.5	12	10.5	8.5	6.5	4.5	2.2



Exploded View of WQ-B Submersible Stainless Steel Sewage Pump

NO.	Part	Material
1	Pump cover	304
2	Gasket	NBR
3	Float switch	/
4	Capacitor	/
5	Motor housing	304
6	Upper bearing plate	HT200
7	Stator	/
8	Bearing	/
9	Rotor	/
10	Bearing	/
11	Cable cord	/
12	Oring	NBR
13	Lower bearing plate	HT200
14	Oring	NBR
15	Mechanical seal	C/ceramic:SiC/SiC
16	Oil chamber	304
17	Impeller	304
18	Volute casing	304
19	Discharge elbow	PA66+30GF
20	Gasket	NBR
21	Base	304

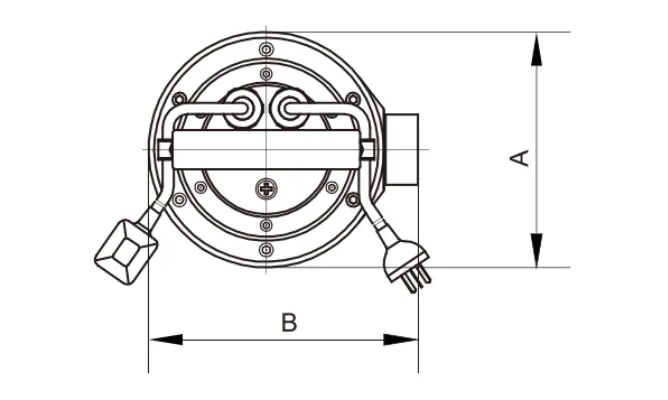

Dimensions of WQ-B Submersible Stainless Steel Sewage Pump

Model	A mm	B mm	C mm	D mm	E Discharge	Packing Size (mm)	N.W
WQ-0.55B	170	195	370	76	G 1.5"F	180×240×390	14kg
WQ-0.75B	170	195	395	76	G 1.5"F	180×240×420	15kg
WQ-1.1B	170	195	396	76	G 1.5"F	180×240×420	16kg
WQ-1.5B	190	201	465	100	G 2"F	200×240×480	19kg
WQ-2.2B	190	225	470	100	G3"F	200×240×480	21kg



Applications of WQ-B Submersible Stainless Steel Sewage Pump

Part Specifications of WQ-B Submersible Stainless Steel Sewage Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 304 welding shaft

4. Double-sided

Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

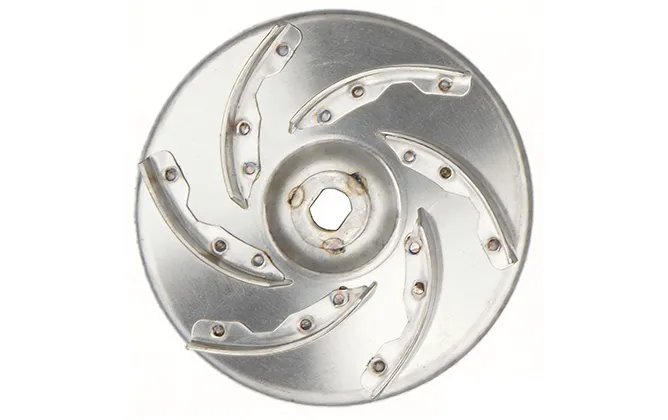

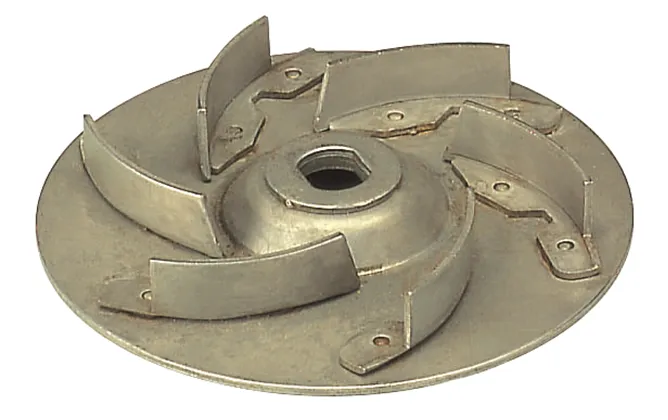

5. Impeller: AISI 304 welding

6. Pump Casing: AISI 304

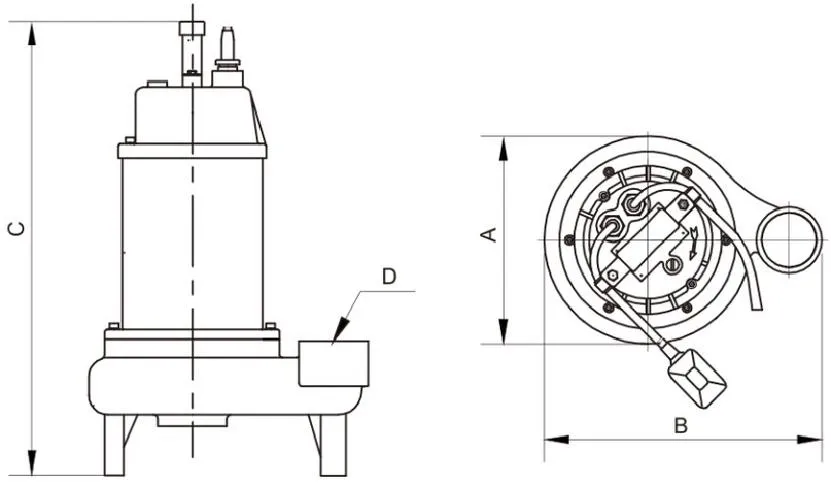

Dimensions of WQ-BS Submersible Stainless Steel Sewage Pump

Model	A mm	B mm	C Discharge	Packing Size (mm)	N.W
WQ-0.75BS	220	430	G 1.5"F	240×270×470	17kg
WQ-1.1BS	220	430	G 1.5"F	240×270×470	18kg



Specifications of WQ-BS Submersible Stainless Steel Sewage Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40℃)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	I/min	0	50	100	150	200	250	300	350
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	3	6	9	12	15	18	21
WQ-0.75BS	220V,50Hz	0.75kW	25μf	38mm	H(m)	11	9.8	8.5	7	6	5
WQ-1.1BS	220V,50Hz	1.1kW	30μf	38mm	H(m)	13.5	12	11	9.5	8	6	4.5	2



Exploded View of WQ-BS Submersible Stainless Steel Sewage Pump

NO.	Part	Material
1	Cable cord	/
2	Hand	304
3	Pump housing	304
4	Pump cover	304
5	Gasket	NBR
6	O ring	NBR
7	Capacitor	/
8	Upper bearing plate	HT200
9	Motor housing	304
10	Float switch	/
11	Stator	/
12	Bearing	/
13	Rotor	/
14	Bearing	/
15	O ring	NBR
16	Lower bearing plate	HT200
17	O ring	NBR
18	Mechanical seal	C/ceramic;SiC/SiC
19	Seal plate	304
20	Impeller	304
21	Volute casing	304
22	Strainer	304

Applications of WQ-BS Submersible Stainless Steel Sewage Pump

Vortex impeller submersible pumps made of stainless steel AISI304, designed for dirty waters containing organic solids. The particular shape of the impeller allows the free passage of solid materials up to 50 mm diameter. Suitable to lift dirty waters and empty cesspits.

Part Specifications of WQ-BS Submersible Stainless Steel Sewage Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 304 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. Impeller: AISI 304 welding

6. Pump Casing: AISI 304

Product Features of WQ Submersible Stainless Steel Sewage Pumps

The flow passage component adopts the unique design method, with wide high-efficency area, and full-lift (no overload) performance. The pump is able to be effectively and safely operated in a larger flow range.

Strong carrying capacity and large-channel clog-proof design of impellers can make the pump effectively deliver the liquid containing solid particles, impurities and macrofiber with the diameter of 6-125 mm.

The motor uses the sleeve-type external circulation cooling system, which means that the product may be reliably operated when it is above the liquid level or the dry-type installation is adopted.

The product is equipped with alarm & protection systems for water leakage, electric leakage, oil leakage, overload, voltage shortage and phase loss, as well as liquid level control systems, able to carry out the centralized control and effective protection for various operating states.

The automatic installation system is reasonable in design, with high intensity, flexible and convenient installation, and no need of constructing pump rooms so as to save the project cost.

Adopt the imported high-quality bearing and grease with high temperature resistance, so that the quick-wear part's service life is more than 10,000 hours.

Applications of WQ Submersible Stainless Steel Sewage Pumps

Mainly used for sewage sludge discharge of industries like municipal sewage treatment projects, industrial & mining enterprises, hospitals, hotels, restaurants, and building industry, also applicable to farm irrigation.

Specifications of WQ Submersible Stainless Steel Sewage Pumps

1. Power: 0.55~355KW

2. Flow: 7~6000m³/h

3. Outlet Diameter: 50~600mm

4. Head: 4.5~50m

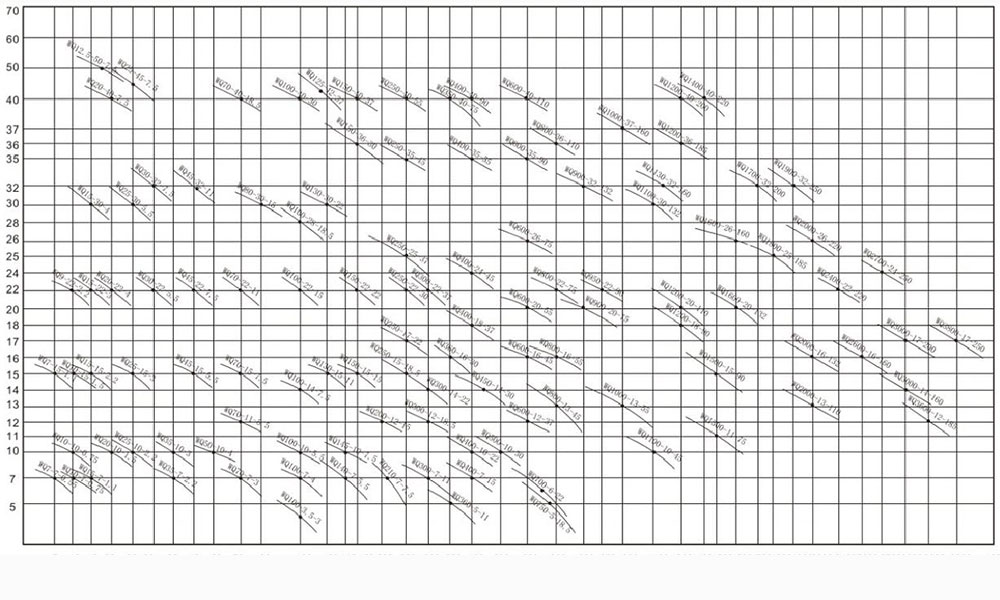

Performance Curves of WQ Series Submersible Sewage Pumps
