Name: Submersible Sand Pumps
Brand: FEGNQIU CRANE(ZHEJIANG) PUMP CO., LTD.
Availability: InStock

It is a wear resistant submersible pump and ideal for pumping water and dirty water mixed with soil, solids. etc.

The pumps are used to pump surface water from building sites, wells, subways or tunnels, for lowering ground water, for irrigation, supply of industrial water, etc.

The low weight and compact design ensure convenient transport, handling, and installation.



HS10-10-0.75
HS15-12-1.1
QDX-AL/QX-AL

Part Specifications of HS10-10-0.75 Submersible Sand Pumps

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 420

4. Double-side Mechanical Seal: Buna-N elastomers

Motor Side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. lmpeller: PTMG

6. Pump Casing: GG20

Specifications of HS10-10-0.75 Submersible Sand Pumps

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40°C)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	l/min	0	50	100	150	200	250	300
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	3	6	9	12	15	18
HS10-10-0.75	220V, 50Hz	0.75kW	25 μf	4mm	H (m)	18	16.5	15	12.3	9.8	6	1.5

* Other voltage and frequency are available if required.



Dimensions of HS10-10-0.75 Submersible Sand Pumps

Model

Discharge

Packing Size

(mm)

N.W.

HS10-10-0.75

200

290

430

210 × 3100 × 440

20kg



Applications of HS15-12-1.1 Submersible Sand Pump

It is a wear resistant submersible pump and ideal for pumping water and dirty water mixed with soil, solids, etc.

The pumps are used to pump surface water from building sites, wells, subways or tunnels, for lowering ground water, for irrigation, supply of industrial water, etc.

The water jacket cooled motor with the top discharge protects the motor against overheating even during sip operation.

The low weight and compact design ensure convenient transport, handling, and installation.

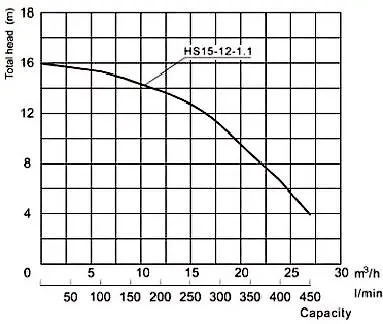

Specifications of HS15-12-1.1 Submersible Sand Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F (40°C) continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

Model

Voltage, Frequency

Output Power

Capacitor

Solids

Handling

I/min

100

150

200

250

300

350

400

450

m³/h

HS15-12-1.1

220V, 50Hz

1.1kW

30 μ f

6mm

(m)

15.5

14.8

13.8

12.8

6.5

*Other voltage and frequency are available if required.



Part Specifications of HS15-12-1.1 Submersible Sand Pump

1. O-ring: Buna-N

2. Pump Housing: Tensile steel

3. Motor Housing: Aluminium alloy

4. Shaft: AISI 304

5. Double-side Mechanical Seal: Buna-N elastomers

Motor Side: Carbon VS Silicon Carbide

Pump Side: Silicon Carbide VS Silicon Carbide

6. Impeller: PTMG

7. Pump Casing: PTMG

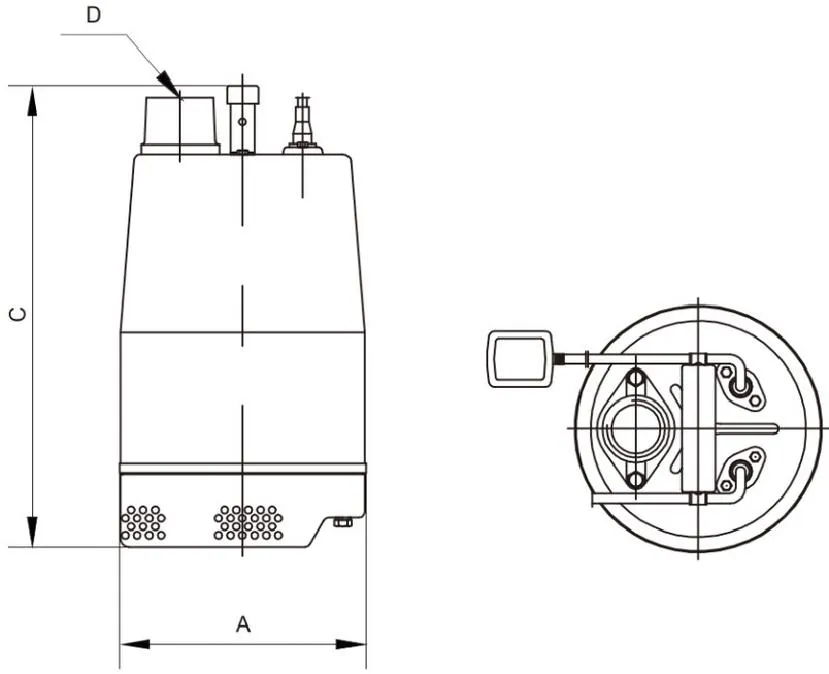

Dimensions of HS15-12-1.1 Submersible Sand Pump

Model

Discharge

Packing Size

(mm)

N.W.

HS15-12-1.1

210

390

G 1.5"F

225×260×400

20kg



Applications of QDX-AL/QX-AL Submersible Sand Pump

QX series are wear resistant submersible pumps and ideal for pumping water and dirty water mixed with soil, solids, etc.

The pumps are used to pump surface water from building sites, wells, subways or tunnels, for lowering ground water, for irigation, supply of industrial water, etc.

The water jacket cooled motor with the top discharge protects the motor against overheating even during sip operation.

The low weight and compact design ensure convenient transport, handling, and installation.

Part Specifications of QDX-AL/QX-AL Submersible Sand Pump

1. Standard cables: 10 m H07RN-F cable type

2. Liquid temperature range: From 0℃ to + 40℃

3. Max. medium density: 1100 kg/m

4. pH of the pumped medium: 5-8

5. Motor: B insulation class, IP68 protection

6. Built-in thermal and current overload protection and a capacitor permanently on in the single phase version

7. Accessories: Single-phase versions can be equipped with or without float switches for automatic operation

Specifications of QDX-AL/QX-AL Submersible Sand Pump

1. O-ring: Buna-N

2. Motor housing: Aluminum

3. Shaft: AISI 420 welding shaft

4. Double-sided mechanical seal: Buna-N elastomers

Motor side: Carbon Vs Silicon Carbide

Pump side: Silicon Carbide Vs Tungsten Carbide

5. Impeller: PTMG or Ductile iron

6. Pump casing: Aluminum

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	/min	0	200	400	600	800	1000	1200
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	12	24	36	48	60	72
QDX25-12-1.5AL	220V, 50Hz	1.5kW	35 μ f	8mm	H (m)	15.5	14	10.4	7
QX40-12-2.2AL	380V, 50Hz	2.2kW	/	8mm		16	15.8	14.6	13	11	8.8	6
QX40-15-3AL	380V, 50Hz	3kW	/	8mm		21	20.6	19	16	11.5	4.2
QX40-20-3.7AL	380V, 50Hz	3.7kW	/	8mm		27	26	24.2	21.5	17	10	3.5

*Other voltage and frequency are available if required.



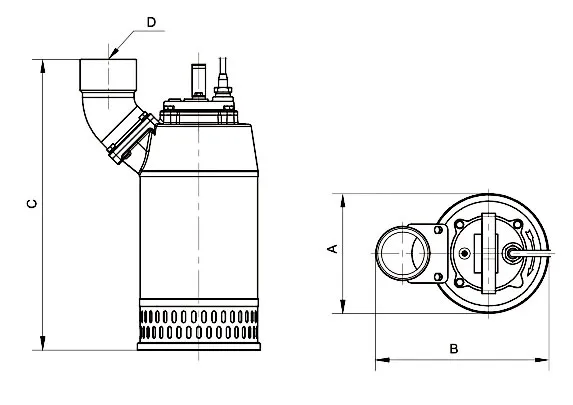

Dimensions of QDX-AL/QX-AL Submersible Sand Pump

Model	A mm	B mm	C mm	D Discharge	Packing Size (mm)	N.W.
QDX25-12-1.5AL	230	320	550	G 2"F	590×320×250	35kg
QX40-12-2.2AL	230	330	550	G 3"F	590×320×250	40kg
QX40-15-3AL	230	340	610	G 4"F	680×330×260	48kg
QX40-20-3.7AL	230	340	610	G 4"F	680×330×260	50kg


