Name: Small-Sized Electric Submersible Pump
Brand: FEGNQIU CRANE(ZHEJIANG) PUMP CO., LTD.
Availability: InStock

Close impeller submersible pumps with cast-iron casing and stainless steel AISI 304 motor shell, designed for clear or slightly dirty water, the suction grid with filter allowing a solid passage up to 5 mm. They can be used even for the lifting of seepage, meteoritic and discharge waters. They are particularly suitable to empty drain well of cellars and garages, tanks, pools and fountains.



QX-F
QDX-F
QDX-HF
ASQ-T

Specifications of QX-F Small-Sized Electric Submersible Pump

Model	Voltage, Frequency	Output Power	Capacitor	l/min	0	100	200	300	400	500	600
Model	Voltage, Frequency	Output Power	Capacitor	m³/h	0	6	12	18	24	30	36
QDX1500F	220V, 50Hz	1.5kW	30 μ f	H(m)	22	20	18.5	15.5	12	7
QX2200F	380V, 50Hz	2.2kW	/	H(m)	27	25	23	20.5	17	12.5	6

* Other voltage and frequency are available if required.



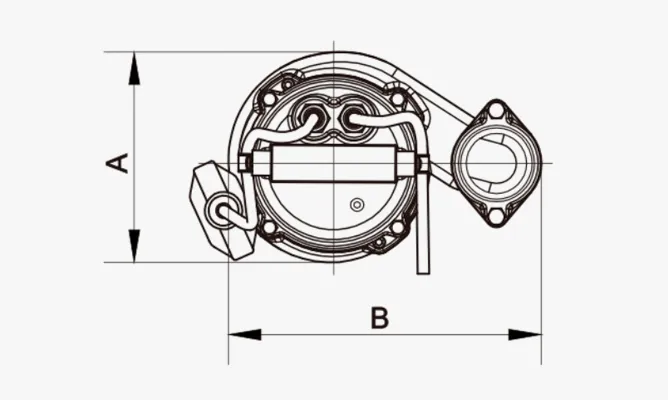

Dimensions of QX-F Small-Sized Electric Submersible Pump

Model	A mm	B mm	C mm	D Discharge	Packing Size (mm)	N.W.
QDX250F	170	210	340	G 1.5"F	150×210×360	9kg
QDX450F	170	250	405	G 2"F	190×260×450	18kg
QDX750F	170	250	405	G 2"F	190×260×450	19kg
QDX1100F	170	250	425	G 2"F	190×260×450	20kg
QDX1500F	200	265	470	G 2"F	210×260×500	25kg
QX2200F	200	265	488	G 2"F	210×260×500	28kg



Part Specifications of QDX-F Small-Sized Electric Submersible Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 420 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. lmpeller: GG20

6. Pump Casing: GG20

Specifications of QDX-F Small-Sized Electric Submersible Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40°C)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

Model	Voltage, Frequency	Output Power	Capacitor	l/min	0	50	100	150	200	250	300	350	400	450
Model	Voltage, Frequency	Output Power	Capacitor	m³/h	0	3	6	9	12	15	18	21	24	27
QDX250F	220V, 50Hz	0.25kW	8 μf	H (m)	10	9.2	7.5	4.8
QDX450F	220V, 50Hz	0.37kW	12.5 μf		11.5	10.5	10	9	7.8	6	4
QDX750F	220V, 50Hz	0.75kW	25 μf		15	14.2	13.5	12.5	11	9.8	7.8	5.5	3
QDX1100F	220V, 50Hz	1.1kW	30 μf		19	18	17	16.2	15.2	13.8	12	9.8	7.8	5

* Other voltage and frequency are available if required.



Part Specifications of QDX-HF Small-Sized Electric Submersible Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 420 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. lmpeller: PPO + 20% Fibre Glass

6. Pump Casing: GG20

Specifications of QDX-HF Small-Sized Electric Submersible Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40°C)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

Model	Voltage, Frequency	Output Power	Capacitor	I/min	0	20	40	60	80	100	120	140	160
Model	Voltage, Frequency	Output Power	Capacitor	m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6
QDX450HF	220V, 50Hz	0.37kW	12.5 μf	H (m)	23	21	19.5	17.5	14.5	11.5	3
QDX750HF	220V, 50Hz	0.75kW	25 μf		28	26.5	25.5	24.2	22	19	15
QDX1100HF	220V, 50Hz	1.1kW	30 μf		34	32	31	29.5	27.5	24.6	21.5	17.5	13.5



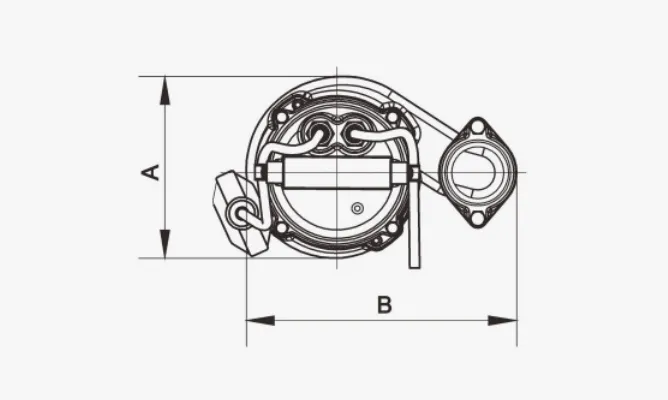

Dimensions of QDX-HF Small-Sized Electric Submersible Pump

Model	A mm	B mm	C mm	D Discharge	Packing Size (mm)	N.W.
QDX450HF	185	260	420	G 1"F	190 × 260 × 440	18kg
QDX750HF	185	260	420	G 1"F	190 × 260 × 440	19kg
QDX1100HF	185	260	435	G 1"F	190 × 260 × 450	20kg



Applications of ASQ-T Non-clog Submersible Sewage Pump

Close impeller submersible pumps with cast-iron casing and stainless steelAlSl 304 motor shell, designed for clear or slightly dirty water, the suction grid with filter allowing a solid passage up to 5 mm. They can be used even for the lifting of seepage, meteoritic and discharge waters. They are particularly suitable to empty drain well of cellars and garages, tanks, pools and fountains.

Part Specifications of ASQ-T Non-clog Submersible Sewage Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 420

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. Impeller: GG20

6. Pump Casing: GG20

Specifications of ASQ-T Non-clog Submersible Sewage Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40°C)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

Model	Voltage, Frequency	Output Power	Capacitor	l/min	0	100	200	400	600	800	1000	1200
Model	Voltage, Frequency	Output Power	Capacitor	m³/h	0	6	12	24	36	48	60	72
ASQ-200M	220V, 50Hz	1.5kW	35 μf	H (m)	15	14.2	13.8	12.8	10.5	8	5.5
ASQ-200T	380V, 50Hz	1.5kW	/		15	14.2	13.8	12.8	10.5	8	5.5
ASQ-300T	380V, 50Hz	2.2kW	/		20	19.3	19	17.2	14.8	11.5	7.5	3
ASQ-500T	380V, 50Hz	3.7kW	/		24	23.3	23	21.8	19	16	12	7

* Other voltage and frequency are available if required.



Dimensions of ASQ-T Non-clog Submersible Sewage Pump

Model	A mm	B mm	C mm	D Discharge (mm)	Packing Size (mm)	N.W.
ASQ-200M	240	340	550	85	250 × 350 × 600	38kg
ASQ-200T	240	340	550	85	250 × 350 × 570	38kg
ASQ-300T	240	340	580	85	250 × 350 × 600	40kg
ASQ-500T	240	340	620	85	250 × 350 × 640	55kg


