Name: Stainless Steel Submersible Clean Water Pump
Brand: FEGNQIU CRANE(ZHEJIANG) PUMP CO.,LTD.
Availability: InStock

Stainless Steel Submersible Clean Water Pump

Open impeller submersible pumps made of stainless steel AISI 304, designed for clean or slightly dirty water, the suction grid with filter allowing a free solid passage up to 10mm. They are particularly suitable to empty drain well of cellars and garages, tanks, pools and fountains.



QDX-B
QDX-BS
QDX-BS A
QDX2-30-0.75BS
QDX-BS B

Part Specifications of QDX-B Submersible Clean Water Pump

1. O-ring: Buna-N

2. Motor Housing: AlSI 304

3. Shaft: AISI 304 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

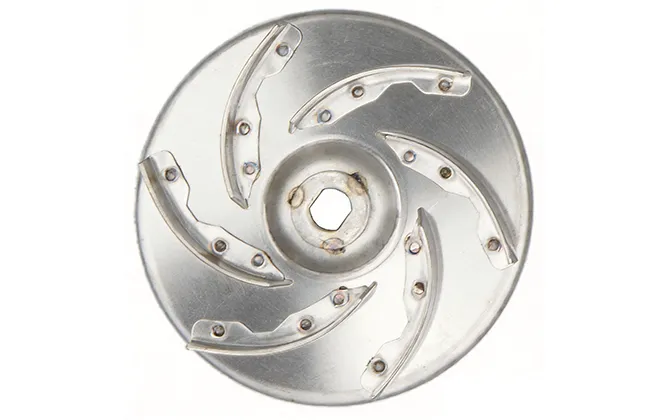

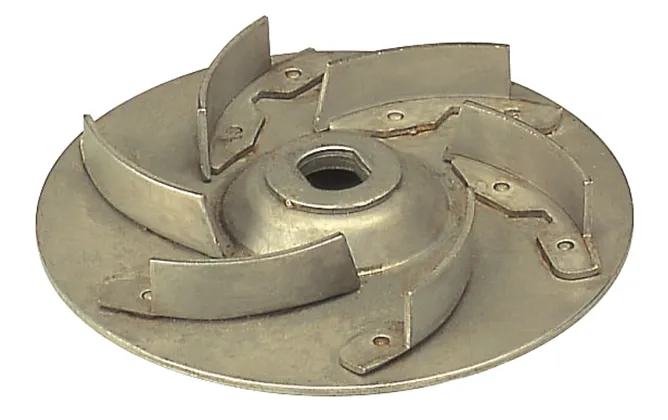

5. Impeller: AISI 304 welding

6. Pump Casing: AISI 304

Exploded View of QDX-B Submersible Clean Water Pump

NO.	Part	Material
1	Pump cover	304
2	Gasket	NBR
3	Float switch	/
4	Capacitor	/
5	Motor housing	304
6	Upper bearing plate	HT200
7	Stator	/
8	Bearing	/
9	Rotor	/
10	Bearing	/
11	Cable cord	/
12	O ring	NBR
13	Lower bearing plate	HT200
14	O ring	NBR
15	Mechanical seal	C/ceramic;SiC/SiC
16	Oil chamber	304
17	Impeller	304
18	Volute casing	304
19	Discharge elbow	PA66+30GF
20	Gasket	NBR
21	Impeller cover	304
22	Strainer	304

Specifications of QDX-B Submersible Clean Water Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40°C) continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

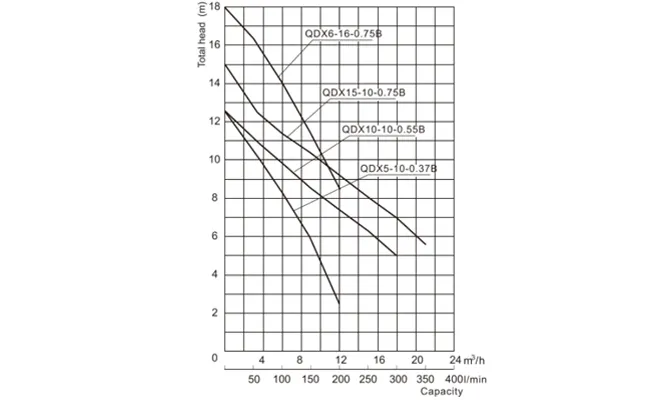

Model	Voltage,Frequency	Output Power	Capacitor	I/min	0	50	100	150	200	250	300	350
Model	Voltage,Frequency	Output Power	Capacitor	m³/h	0	3	6	9	12	15	18	21
QDX5-10-0.37B	220V,50Hz	0.37KW	12.5μf	H(m)	12.5	10	8.5	6	2.5
QDX10-10-0.55B	220V,50Hz	0.55KW	16μf		12.5	10.8	9.5	8.5	7.5	6.5	5
QDX15-10-0.75B	220V,50Hz	0.75kW	25μf		15	12.5	11.5	10.5	9	8	7	5.5
QDX6-16-0.75B	220V,50Hz	0.75kW	25μf		18	16.5	14	11.5	8.5

*Other voltage and frequency are available if required.

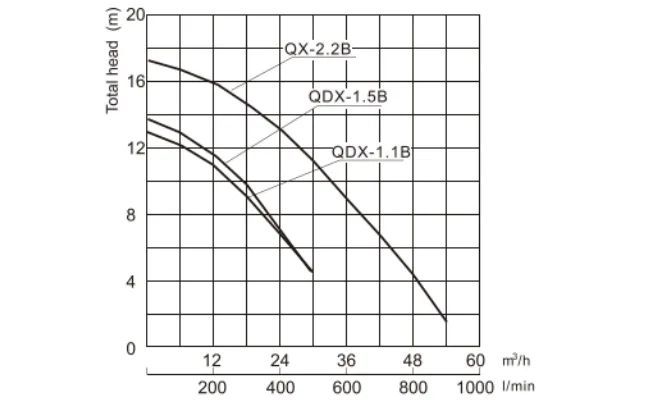

Model	Voltage,Frequency	Output Power	Capacitor	I/min	0	100	200	300	400	500	600	700	800	900
Model	Voltage,Frequency	Output Power	Capacitor	m³/h	0	6	12	18	24	30	36	42	48	54
QDX-1.1B	220V,50Hz	1.1kW	30μf	H(m)	13.5	12.5	11	9	7	4.5
QDX-1.5B	220V,50Hz	1.5KW	30μf		13.9	13	11.5	9.6	7	4.5
QX-2.2B	380V,50Hz	2.2kW	/		17.5	17	16	14.5	13.6	11.7	9	7	4.2	1.8

*Other voltage and frequency are available if required.



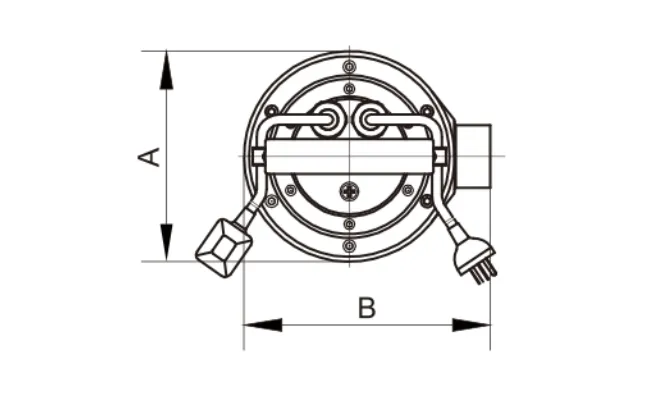

Dimensions of QDX-B Submersible Clean Water Pump

Model	A mm	B mm	C mm	D mm	E Discharge	Packing Size (mm)	N.W
QDX5-10-0.37B	170	195	360	68	G 1.5"F	170×240×390	12kg
QDX10-10-0.55B	170	195	360	68	G 1.5"F	170×240×390	13kg
QDX15-10-0.75B	170	195	385	68	G 1.5"F	170×240×420	14kg
QDX6-16-0.75B	170	195	385	68	G 1.5"F	170×240×420	14kg
QDX-1.1B	170	210	385	68	G 2"F	170×240×420	16kg
QDX-1.5B	170	210	405	68	G 2"F	170×240×420	18kg
QX-2.2B	170	215	435	80	G3"F	210×250×460	20kg



Specifications of QDX-BS Submersible Clean Water Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40℃)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

Model	Voltage, Frequency	Output Power	Capacitor	I/min	0	50	100	150	200	250	300	350
Model	Voltage, Frequency	Output Power	Capacitor	m³/h	0	3	6	9	12	15	18	21
QDX370BS	220V,50Hz	0.37KW	12.5μf	H(m)	10.5	8.5	7.2	6	4.5	2
QDX550BS	220V,50Hz	0.55KW	16μf		12	10.2	9	8.8	6.2	4.5	2.5
QDX750BS	220V,50Hz	0.75kW	25μf		14	11.8	10	8.5	7	5.2	3
QDX1100BS	220V,50Hz	1.1kW	30μf		16	13.8	10.2	10.2	9	7	4.8	2

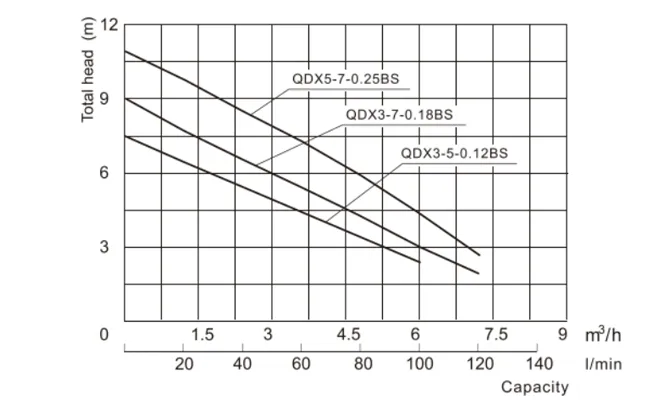

Model	Voltage, Frequency	Output Power	Capacitor	I/min	0	20	40	60	80	100	120
Model	Voltage, Frequency	Output Power	Capacitor	m³/h	0	1.2	2.4	3.6	4.8	6	7.2
QDX3-5-0.12BS	220V,50Hz	0.12KW	8μf	H(m)	7.5	6.4	5.5	4.8	3.3	2.5
QDX3-7-0.18BS	220V,50Hz	0.18KW	8μf		9	7.5	6.6	5.8	4.5	3	1.5
QDX5-7-0.25BS	220V,50Hz	0.25KW	8μf		11	9.3	8.5	7.5	6	4.5	2.5

*Other voltage and frequency are available if required.



Dimensions of QDX-BS Submersible Clean Water Pump

Model	A mm	B mm	C Discharge	Packing Size (mm)	N.W.
QDX370BS	220	360	G 1.5"F	230×270×380	15kg
QDX550BS	220	360	G 1.5"F	230×270×380	16kg
QDX750BS	220	380	G 1.5"F	230×270×400	17kg
QDX1100BS	220	380	G 1.5"F	230×270×400	18kg

Model	A mm	B mm	C Discharge	Packing Size (mm)	N.W.
QDX3-5-0.12BS	130	280	G 1.25"F	170×190×300	6kg
QDX3-7-0.18BS	130	280	G 1.25"F	170×190×300	6kg
QDX5-7-0.25BS	150	290	G 1.25"F	200×200×340	7kg



Part Specifications of QDX-BS Submersible Clean Water Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 304 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. Impeller: AISI 304 welding

6. Pump Casing: AISI 304

Exploded View of QDX-BS Submersible Clean Water Pump

NO.	Part	Material
1	Cable cord	/
2	Hand	304
3	Pump housing	304
4	Pump cover	304
5	Gasket	NBR
6	O ring	NBR
7	Capacitor	/
8	Upper bearing plate	HT200
9	Motor housing	304
10	Float switch	/
11	Stator	/
12	Bearing	/
13	Rotor	/
14	Bearing	/
15	O ring	NBR
16	Lower bearing plate	HT200
17	O ring	NBR
18	Mechanical seal	C/ceramic;SiC/SiC
19	Seal plate	304
20	Impeller	304
21	Volute casing	304
22	Strainer	304

Applications of QDX-BS A Submersible Clean Water Pump

Open impeller submersible pumps made of stainless steel AISI 304, designed for clean or slightly dirty water, the suction grid with filter allowing a free solid passage up to 10 mm. They are particularly suitable to empty drain well of cellars and garages, tanks, pools and fountains.

Part Specifications of QDX-BS A Submersible Clean Water Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 304 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. Impeller: AISI 304 welding

6. Pump Casing: AISI 304

Specifications of QDX-BS A Submersible Clean Water Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40℃) continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

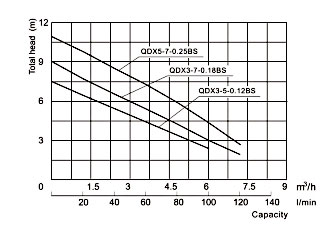

Model	Voltage, Frequency	Output Power	Capacitor	I/min -	0	20	40	60	80	100	120
Model	Voltage, Frequency	Output Power	Capacitor	m³/h	0	1.2	2.4	3.6	4.8	6	7.2
QDX3-5-0.12BS	220V, 50Hz	0.12kW	8 μ f	H (m)	7.5	6.4	5.5	4.8	3.3	2.5
QDX3-7-0.18BS	220V, 50Hz	0.18kW	8 μ f		9	7.5	6.6	5.8	4.5	3	1.5
QDX5-7-0.25BS	220V, 50Hz	0.25kW	8 μ f		11	9.3	8.5	7.5	6	4.5	2.5

*Other voltage and frequency are available if required.

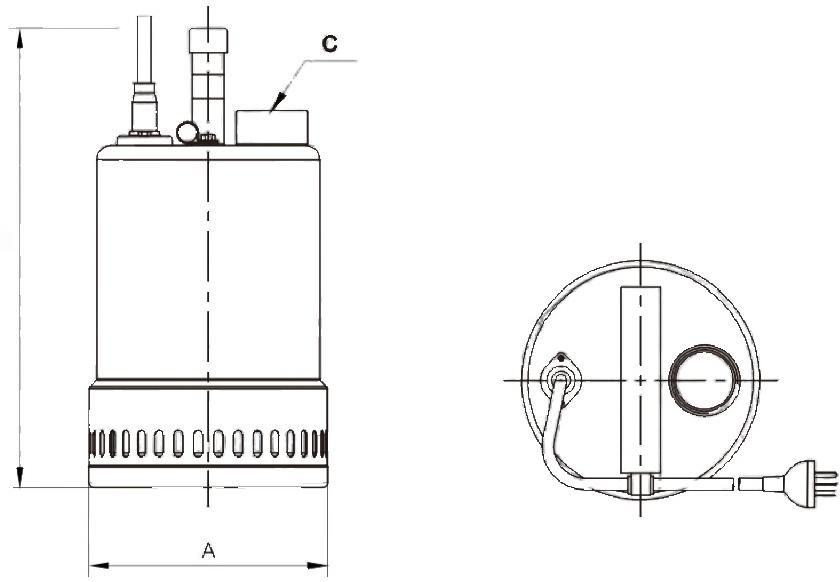

Dimensions of QDX-BS A Submersible Clean Water Pump

Model	A mm	B mm	C Discharge	Packing Size (mm)	N.W.
QDX3-5-0.12BS	130	280	G 1.25"F	170×190×300	6kg
QDX3-7-0.18BS	130	280	G 1.25"F	170×190×300	6kg
QDX5-7-0.25BS	150	290	G 1.25"F	200×200×340	7kg


Applications of QDX2-30-0.75BS Submersible Clean Water Pump

Close impeller submersible pumps made of stainless steel AISI 304, designed for clean or slightly dirty water, the suction grid with filter allowing a free solid passage up to 10 mm. They are particularly suitable to empty drain well of cellars and garages, tanks, pools and fountains.

Part Specifications of QDX2-30-0.75BS Submersible Clean Water Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 304 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. Impeller: PPO+20% Fibre Glass

6. Pump Casing: PA66+40% Fibre Glass

Specifications of QDX2-30-0.75BS Submersible Clean Water Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F (40°C) continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

I/min;

Model

Voltage, Frequency

Output Power

Capacitor

m³/h

0.6

1.2

2.4

3.6

4.8

QDX2-30-0.75BS

220V, 50Hz

0.75kW

25 μ f

(m)

31.5

30.2

28.5

*Other voltage and frequency are available if required.

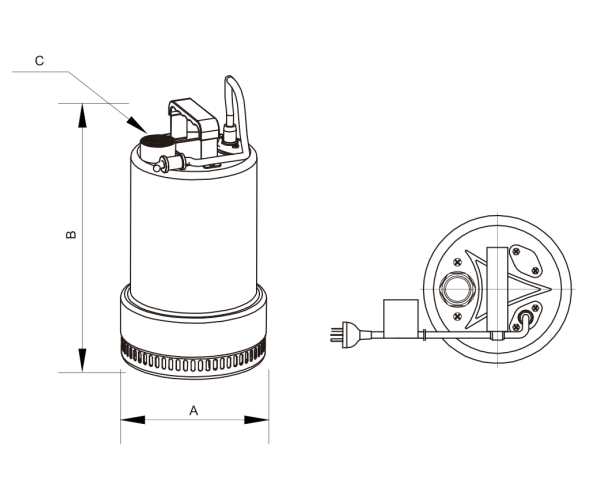

Dimensions of QDX2-30-0.75BS Submersible Clean Water Pump

Model

Discharge

Packing Size

(mm)

N.W.

QDX2-30-0.75BS

185

340

G 1.25"F

185×250×350

13kg


Applications of QDX-BS B Submersible Clean Water Pump

Open impeller submersible pumps made of stainless steel AISI 304, designed for clean or slightly dirty water, the suction grid with filter allowing a free solid passage up to 10mm. They are particularly suitable to empty drain wellof cellars and garages, tanks, pools and fountains.

Part Specifications of QDX-BS B Submersible Clean Water Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 304 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Slicon Carbide VS Silicon Carbide

5. Impeller: AISI 304 welding

6. Pump Casing: AISI 304

Specifications of QDX-BS B Submersible Clean Water Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F (40℃) continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

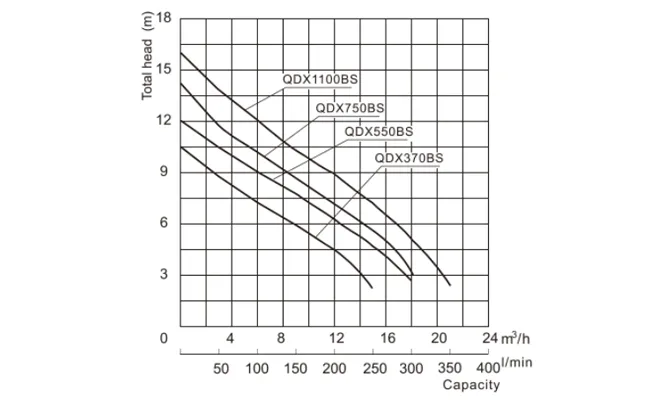

Model	Voltage, Frequency	Output Power	Capacitor	I/min	0	50	100	150	200	250	300	350
				m³h	0	3	6	9	12	15	18	21
QDX370BS	220V, 50Hz	0.37kW	12.5 μ f	H (m)	10.5	8.5	7.2	6	4.5	2
QDX550BS	220V, 50Hz	0.55kW	16 μ f		12	10.2	9	8.8	6.2	4.5	2.5
QDX750BS	220V, 50Hz	0.75kW	25 μ f		14	11.8	10	8.5	7	5.2	3
QDX1100BS	220V, 50Hz	1.1kW	30 μ f		16	13.8	10.2	10.2	9	7	4.8	2

*Other voltage and frequency are available if required.

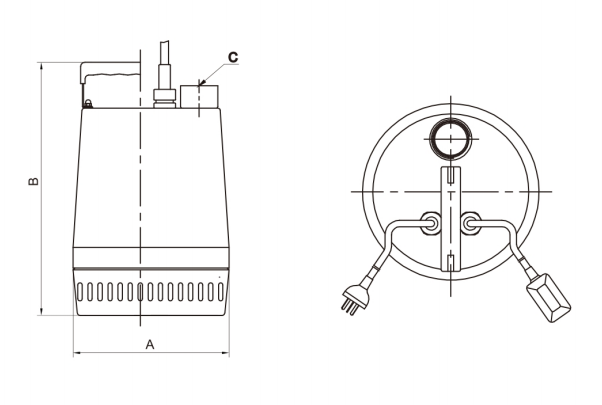

Dimensions of QDX-BS B Submersible Clean Water Pump

Model	A mm	B mm	C Discharge	Packing Size (mm)	N.W.
QDX370BS	220	360	G 1.5"F	230×270×380	15kg
QDX550BS	220	360	G 1.5"F	230×270×380	16kg
QDX750BS	220	380	G 1.5"F	230×270×400	17kg
QDX1100BS	220	380	G 1.5"F	230×270×400	18kg
