Name: Non-clog Submersible Sewage Pumps
Brand: FEGNQIU CRANE(ZHEJIANG) PUMP CO., LTD.
Availability: InStock

Applications of 50WQ Non-clog Submersible Sewage Pump

Non-clogging submersible sewage pumps, oil-filled motor, for installation in small lift stations, drainage systems or raw water applications.

Made specially for:

Homes and farms
Mobile home parks and motels
Schools and hospitals
Municipal package systems
Industrial treatment systems
Dewatering applications

Specifications of 50WQ Non-clog Submersible Sewage Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40°C)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

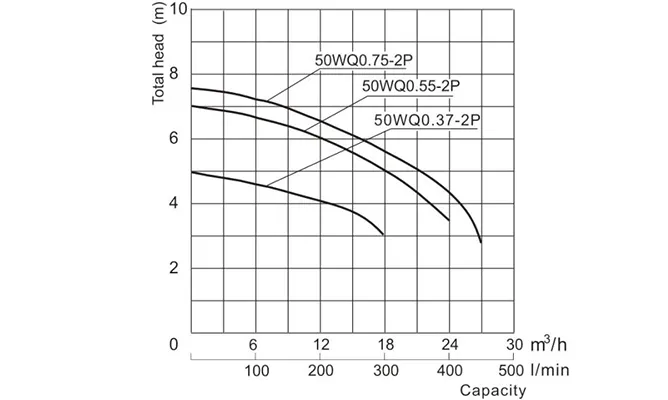

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	I/min	0	50	100	150	200	250	300	350	400	450
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	3	6	9	12	15	18	21	24	27
50WQ0.37-2P	220V, 50Hz	0.37kW	16 μf	38mm	H (m)	5	4.8	4.6	4.4	4.1	3.6	3
50WQ0.55-2P	220V, 50Hz	0.55kW	25 μf	38mm		7	6.8	6.6	6.4	6	5.6	5	4.3	3.5
50WQ0.75-2P	220V, 50Hz	0.75kW	25 μf	38mm		7.5	7.3	7	6.8	6.5	6.2	5.6	5	4.3	2.8
50WQP0.37-4P	220V, 50Hz	0.37kW	16 μf	38mm		5.5	5.2	5	4.6	4.2	4	3.8	3.4	3
50WQP0.55-4P	220V, 50Hz	0.55kW	20 μf	38mm		6.5	5.7	5.5	5.2	4.9	4.7	4.5	4.2	3.6
50WQP0.75-4P	220V, 50Hz	0.75kW	20 μf	38mm		7	6.2	6	5.8	5.4	5.2	5	4.8	4.2	3.2

* Other voltage and frequency are available if required.



Dimensions of 50WQ Non-clog Submersible Sewage Pump

Model	A mm	B mm	C mm	D Discharge	Packing Size (mm)	N.W.
50WQ0.37-2P	190	280	430	G 2"F	220 × 310 × 470	20kg
50WQ0.55-2P	190	280	430	G 2"F	220 × 310 × 470	22kg
50WQ0.75-2P	190	280	430	G 2"F	220 × 310 × 470	25kg
50WQP0.37-4P	210	300	430	G 2"F	220 × 310 × 470	24kg
50WQP0.55-4P	210	300	430	G 2"F	220 × 310 × 470	24kg
50WQP0.75-4P	210	300	430	G 2"F	220 × 310 × 470	27kg



Applications of 80WQ Non-clog Submersible Sewage Pump

Non-clogging submersible sewage pumps, oil-filled motor, for installation in small lift stations, drainage systems or raw water applications.

Made specially for:

Homes and farms
Mobile home parks and motels
Schools and hospitals
Municipal package systems
Industrial treatment systems
Dewatering applications

Part Specifications of 80WQ Non-clog Submersible Sewage Pump

1. O-ring: Buna-N

2. Motor Housing: GG20

3. Shaft: AISI 420

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. lmpeller: GG20

6. Pump Casing: GG20

Specifications of 80WQ Non-clog Submersible Sewage Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40° C)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

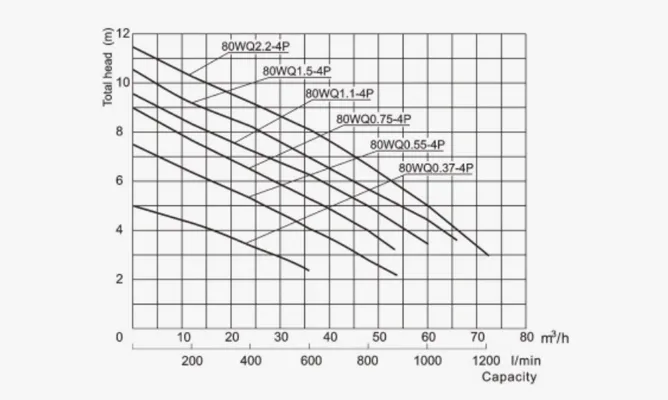

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	l/min	0	100	200	400	600	800	1000
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	6	12	24	36	48	60
80WQ0.37-4P	220V, 50Hz	0.37kW	16 μf	50mm	H (m)	5	4.8	4.3	3.4	2
80WQ0.55-4P	220V, 50Hz	0.55kW	20 μf	50mm		7.5	6.8	6.2	5.2	2	2.9
80WQ0.75-4P	220V, 50Hz	0.75kW	25 μf	50mm		9	8	7.3	6.5	5.2	4
80WQ1.1-4P	220V, 50Hz	1.1kW	30 μf	50mm		9.5	8.8	8.3	7.2	6.2	5	3.5
80WQ1.5-4P	380V, 50Hz	1.5kW	/	50mm		10.5	9.7	9	8.2	7	5.7	4.5
80WQ2.2-4P	380V, 50Hz	2.2kW	/	50mm		11.5	10.9	10.3	9.2	8.2	6.8	5

* Other voltage and frequency are available if required.



Dimensions of 80WQ Non-clog Submersible Sewage Pump

Model	A mm	B mm	C mm	D Discharge	Packing Size (mm)	N.W.
80WQ0.37-4P	300	340	480	G 3"F	320 × 350 × 600	40kg
80WQ0.55-4P	300	340	480	G 3"F	320 × 350 × 600	41kg
80WQ0.75-4P	300	340	480	G 3"F	320 × 350 × 600	41kg
80WQ1.1-4P	300	340	480	G 3"F	320 × 350 × 600	43kg
80WQ1.5-4P	300	340	480	G 3"F	320 × 350 × 600	43kg
80WQ2.2-4P	300	340	480	G 3"F	320 × 350 × 600	46kg



Applications of 100WQ Non-clog Submersible Sewage Pump

Non-clogging submersible sewage pumps, oil-filled motor, for installation in small lift stations, drainage systems or raw water applications.

Made specially for:

Homes and farms
Mobile home parks and motels
Schools and hospitals
Municipal package systems
Industrial treatment systems
Dewatering applications

Part Specifications of 100WQ Non-clog Submersible Sewage Pump

1. O-ring: Buna-N

2. Motor Housing: GG20

3. Shaft: AISI 420

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

Single-sided Mechanical Seal: Buna-N elastomers

Silicon Carbide VS Silicon Carbide

5. lmpeller: GG20

6. Pump Casing: GG20

Specifications of 100WQ Non-clog Submersible Sewage Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40°C)continuous

3. Motor: B insulation class, IP68 protection

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	l/min	0	200	400	600	800	1000	1200	1400
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	12	24	36	48	60	72	84
100WQ1.5-4P	380V, 50Hz	1.5kW	/	45mm	H (m)	10	9.2	8.5	7.3	5.8	3.8	2.2
100WQ2.2-4P	380V, 50Hz	2.2kW	/	45mm		12.5	11.2	10.3	9.5	8	6.5	4.5	2.8
100WQ3.7-4P	380V, 50Hz	3.7kW	/	45mm		13.5	12.2	11.7	11	10	9.2	8	5.5

* Other voltage and frequency are available if required.



Dimensions of 100WQ Non-clog Submersible Sewage Pump

Model	A mm	B mm	C mm	D Discharge	Packing Size (mm)	N.W.
100WQ1.5-4P	450	470	630	G 4"F	460 × 470 × 640	65kg
100WQ2.2-4P	450	470	630	G 4"F	460 × 470 × 640	75kg
100WQ3.7-4P	450	470	630	G 4"F	460 × 470 × 640	88kg



Applications of 80WQ (Blue) Non-clog Submersible Sewage Pump

Non-clogging submersible sewage pumps, oil-filled motor, for installation in small lift stations, drainage systems or raw water applications.

Made specially for:

Homes and farms
Mobile home parks and motels
Schools and hospitals
Municipal package systems
Industrial treatment systems
Dewatering applications

Part Specifications of 80WQ (Blue) Non-clog Submersible Sewage Pump

1. O-ring: Buna-N

2. Motor Housing: GG20

3. Shaft: AISI 420

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. Impeller: GG20

6. Pump Casing: GG20

Specifications of 80WQ (Blue) Non-clog Submersible Sewage Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104° F(40°C)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

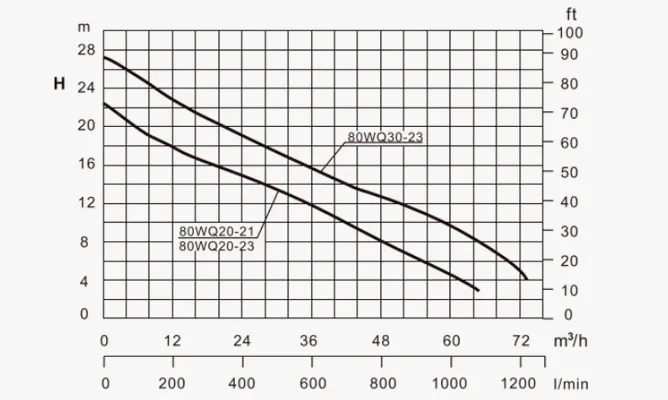

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handing	l/min	0	200	400	600	800	1000	1200
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handing	m³/h	0	12	24	36	48	60	72
80WQ20-21	208-240V, 60Hz	2HP	45uf/370V	50mm	H (m)	22.5	18	15	12	8.5	5
80WQ20-23	230/460V, 60Hz	2HP	/	50mm		22.5	18	15	12	8.5	5
80WQ30-23	230/460V, 60Hz	3HP	/	50mm		27	23	19	16	13	10	6.5



Dimensions of 80WQ (Blue) Non-clog Submersible Sewage Pump

Model	A mm	B mm	C mm	D mm	E Discharge	Packing Size (mm)	N.W.
80WQ20-21	217	325	545	181	3"NPT	270 × 360 × 650	42kg
80WQ20-23	217	325	545	181	3"NPT	270 × 360 × 650	42kg
80WQ30-23	217	325	545	181	3"NPT	270 × 360 × 650	44kg



Applications of VSP Non-clog Submersible Sewage Pump

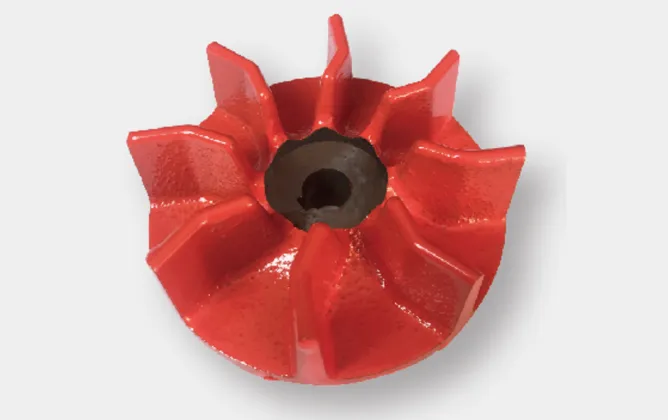

Submersible pumps with vortex impeller, hydraulic parts of cast iron and stainless steel AISI 304 motor shell, designed for waste water with solid organic materials. The particular shape of the impeller allows a solid passage up to 50mm, depending on the model. They are suitable to lift dirty water including draining flooding in confined areas such as basements and garages, pumping domestic waste from homes, commercial premises or farms and removing waste water from process plants, factories, building sites or mines, etc.

Part Specifications of VSP Non-clog Submersible Sewage Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 420 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. lmpeller: GG20

VSP180F: PPO+ 20% Fibre Glass

6. Pump Casing: GG20

Specifications of VSP Non-clog Submersible Sewage Pump

1. Power Cable: Standard cord is 10m

VSP180F: 5m

2. Liquid Temperature: 104 °F(40°C)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

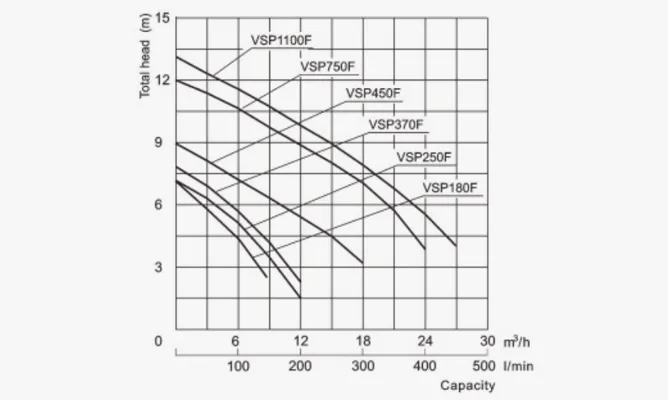

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	l/min	0	50	100	150	200	250	300	350	400	450
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	3	6	9	12	15	18	21	24	27
VSP180F	220V, 50Hz	0.18kW	8 μf	19mm	H (m)	7	5.8	4.5
VSP250F	220V, 50Hz	0.25kW	8 μf	28mm		7	6.2	5	3.5	1.5
VSP370F	220V, 50Hz	0.37kW	8 μf	28mm		8	7	5.5	3.8	2
VSP450F	220V, 50Hz	0.37kW	12.5 μf	38mm		9	7.8	7	6.2	5.5	4.5	3.2
VSP750F	220V, 50Hz	0.75kW	25 μf	38mm		12	11	10.5	9.8	8.8	7.8	6.8	5.5	3.8
VSP1100F	220V, 50Hz	1.1kW	30 μf	50mm		13	12.2	11.5	10.5	9.5	8.8	7.8	6.5	5.5	4

* Other voltage and frequency are available if required.

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	l/min	0	100	200	300	400	500	600
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	6	12	18	24	30	36
VSP1500F	220V, 50Hz	1.5kW	30 μf	50mm	H (m)	15	14	13	11.5	9.5	7	3
VSP2200F	380V, 50Hz	2.2kW	/	50mm	H (m)	16	15	14	12.5	10.8	8.5	4.5

* Other voltage and frequency are available if required.



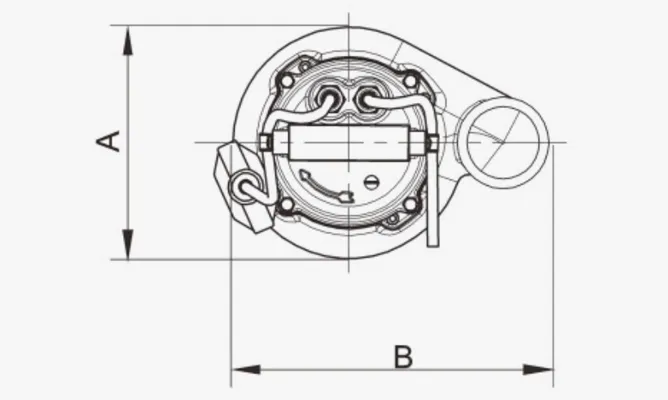

Dimensions of VSP Non-clog Submersible Sewage Pump

Model	A mm	B mm	C mm	E Discharge	Packing Size (mm)	N.W.
VSP180F	130	170	340	G 1.25"F	170 ×180×360	8kg
VSP250F	130	170	340	G 1.25"F	170×180× 360	10kg
VSP370F	130	170	340	G 1.25"F	170×180×360	10kg
VSP450F	195	265	445	G 2"F	210×280×470	18kg
VSP750F	300	265	445	G 2"F	210×280×470	21kg
VSP1100F	195	265	478	G 2"F	210×280×490	23kg
VSP1500F	195	265	515	G 2"F	210×280×540	27kg
VSP2200F	195	265	535	G 2"F	210×280×540	29kg



Applications of ASC Non-clog Submersible Sewage Pump

Submersible pumps with vortex impeller, hydraulic parts of cast iron and stainless steel AISI 304 motor shell, designed for waste water with solid organic materials. The particular shape of the impeller allows a solid passage up to 50mm, depending on the model. They are suitable to lift dirty water including draining flooding in confined areas such as basements and garages, pumping domestic waste from homes, commercial premises or farms and removing waste water from process plants, factories, building sites or mines, etc.

Part Specifications of ASC Non-clog Submersible Sewage Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 420

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

5. lmpeller: GG20

6. Pump Casing: GG20

Specifications of ASC Non-clog Submersible Sewage Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40°C)continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

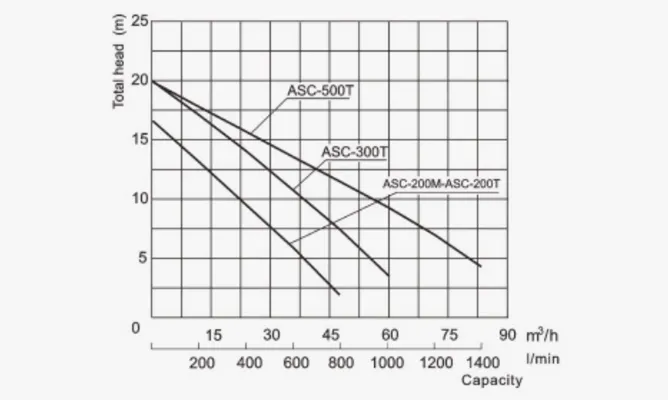

Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	l/min	0	200	400	600	800	1000	1200	1400
Model	Voltage, Frequency	Output Power	Capacitor	Solids Handling	m³/h	0	12	24	36	48	60	72	84
ASC-200M	220V, 50Hz	1.5kW	35 μf	50mm	H (m)	16	12.5	9.5	5.5	2
ASC-200T	380V, 50Hz	1.5kW	/	50mm		16	12.5	9.5	5.5	2
ASC-300T	380V, 50Hz	2.2kW	/	50mm		20	16.8	14	10.8	7.5	3.5
ASC-500T	380V, 50Hz	3.7kW	/	50mm		20	17.5	15.5	13.5	11.5	9.5	7	4.5



Dimensions of ASC Non-clog Submersible Sewage Pump

Model	A mm	B mm	C mm	D mm	E mm	F mm	G Discharge (mm)	Packing Size (mm)	N.W.
ASC-200M	280	300	560	90	150	102	65	320 × 390 × 580	44kg
ASC-200T	280	300	530	90	150	102	65	320 × 390 × 580	44kg
ASC-300T	280	300	550	90	150	102	65	320 × 390 × 580	46kg
ASC-500T	305	250	615	105	180	0	80	260 × 430 × 620	61kg



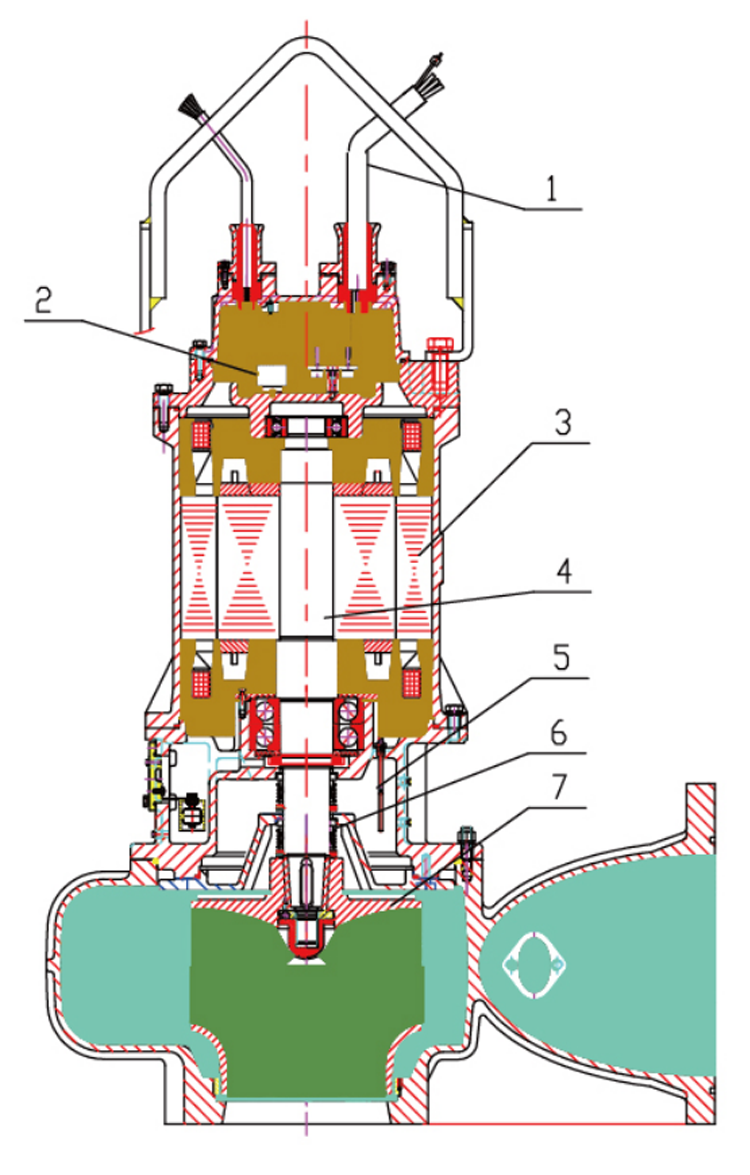

Exploded View of Non-clog Submersible Sewage Pumps

	1. Unique water-resistant power cable design prevents leakage caused by outer jacket damage.
	2. The water-leakage probe inside the motor sends out an alarm signal in case of motor water leakage, and the control system offers automatic pump protection.
	3. The motor winding insulation is Class F, with a thermal protector in each phase.
	4. The motor shaft is made of stainless steel. The rotor has been dynamically balanced, which allows the pump to run smoothly.
	5. The pump is equipped with dual seal monitoring systems. Leaking from either seal will trigger the warning signal. The probe in the wiring chamber will send a warning signal if leaking happens and thus protects the pump system.
	6. Mechanical seals: Carbon Vs. SiC motor side, Tungcar vs SiC pump side. These seals are high-temperature compatible, anti-impacting, anti-wearing, and have long service life. Thus, the pump can run for a long time safely.
	7. Channel impeller design provides large solids passage, anti-clogging, and high efficiency, etc.



Features of WQ Series Non-clog Submersible Sewage Pump

Unique hydraulic design provides excellent hydraulic abilities and non-loading characteristics, allowing the pump to run with high efficiency and safely in higher capacity.

Excellent hydraulic abilities. The big channel and non-clogging impeller can transfer liquid containing solid particles, long fibers, and impurities between 6 - 125 mm in diameter.

The pump is equipped with a fully automatic alarm protection system and a liquid level control system to protect the pump against water, oil or electricity leakage, overloading, overheating and lack of phase, etc. In addition, the pump is controlled and protected in various states, and we ensure it is operating properly.

The automatic installation system is well designed with high strength and easy to install. No pumping station is required.

High-quality bearings and high-temperature grease are used in the pumps, which allow the components to run over 10,000 hours without repairing.

Applications of WQ Series Non-clog Submersible Sewage Pump

It is mainly used for removing various sewage sludges in municipal and industrial sewage treatment projects, industrial and mining enterprises, hospitals, hotels, restaurants, construction, and other industries. It is used for transporting urban sewage, wastewater, and rainwater containing solid particles and various fibers. It is also used for farmland irrigation.

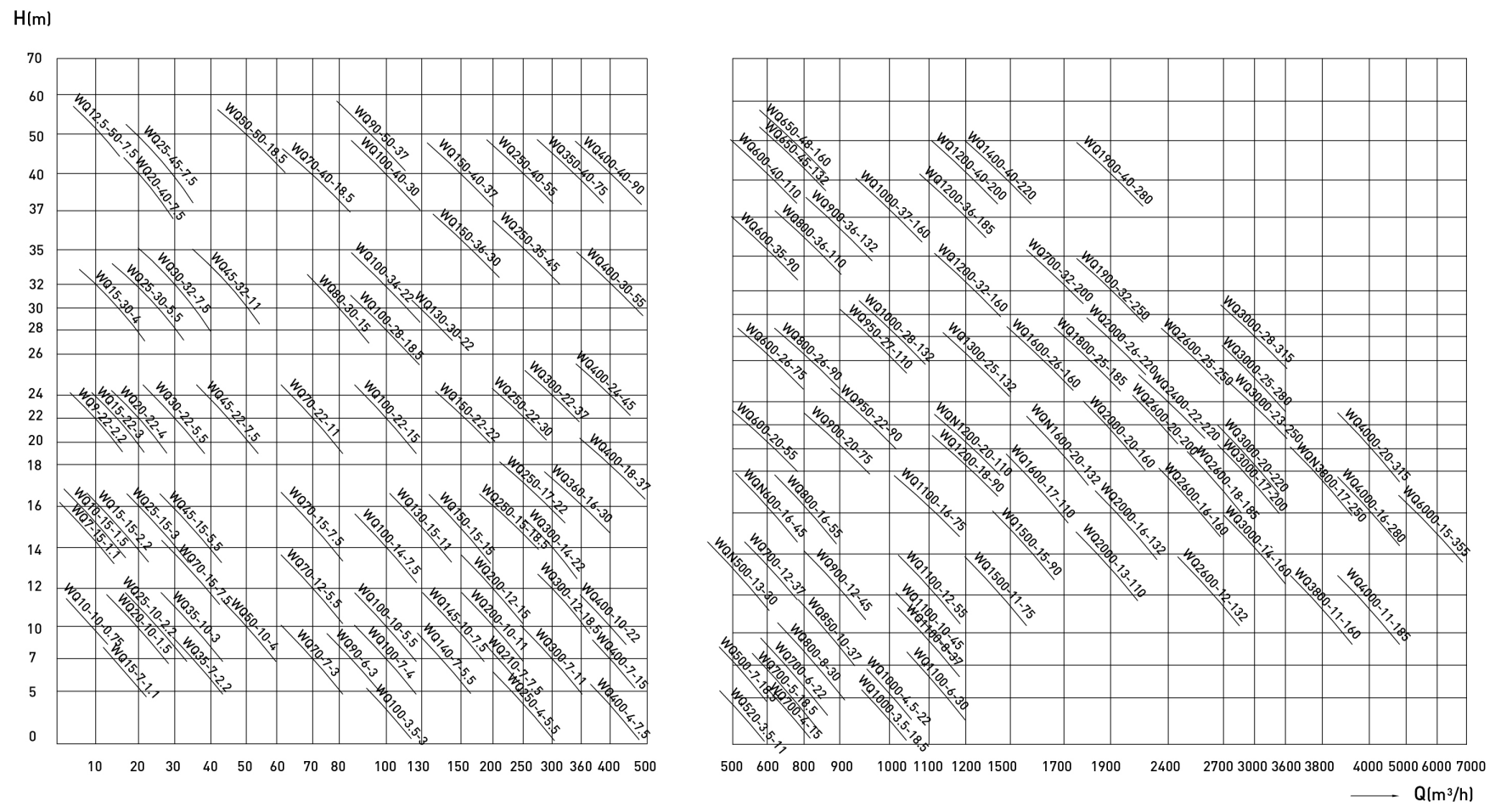

Type Spectrum Diagram of WQ Submersible Sewage Pumps

View the Technical Specification of All WQ Series Submersible Sewage Pumps

Type Spectrum Diagram of WQ Submersible Sewage Pumps
