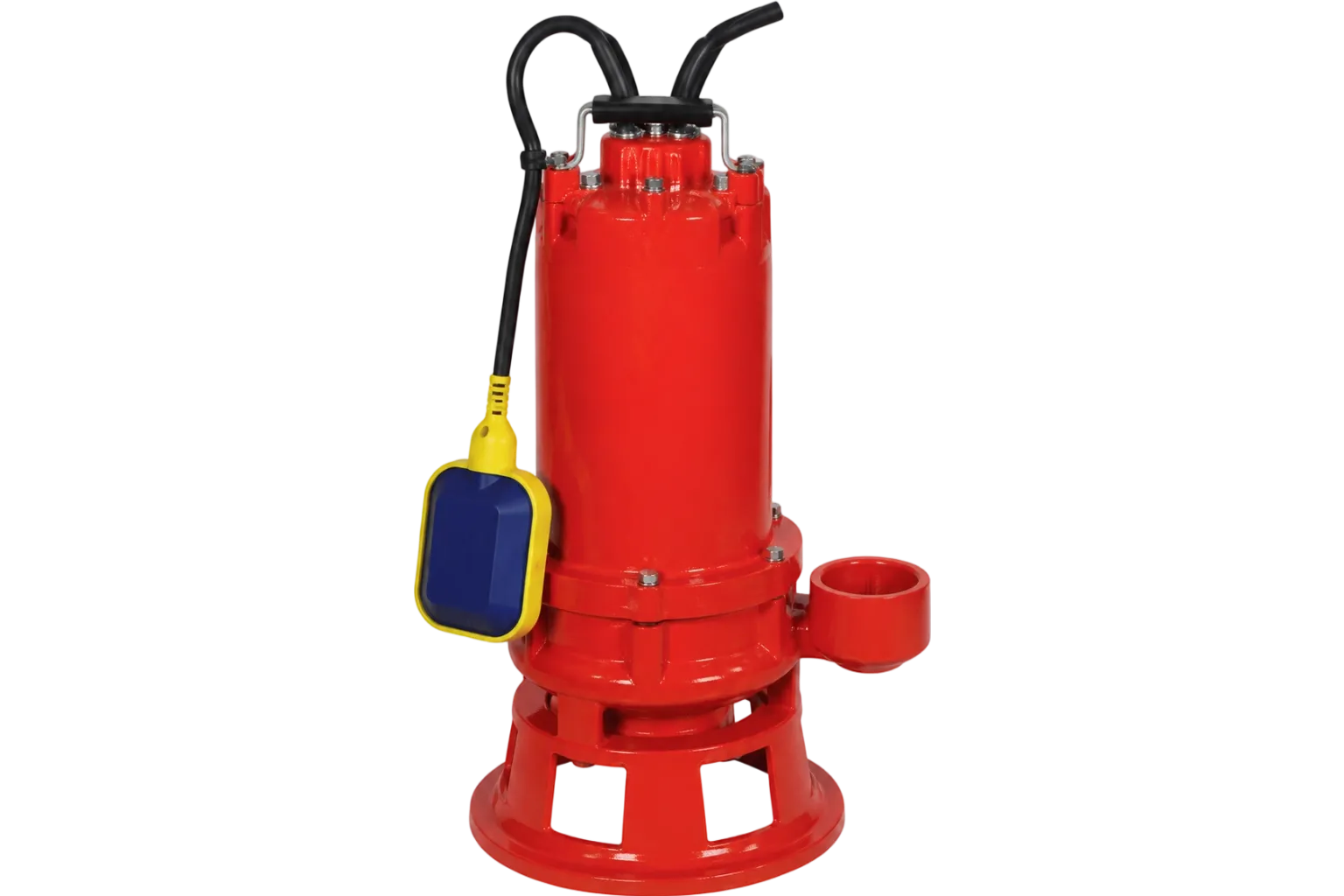

WQ-SQG Series

  • Easy installation thanks to 10m power cable with plug.

  • Automatic operation through tethered float switch.

  • Operationally safe thanks to self-switching thermal motor monitoring.


WQ-SQG Series
Product Selection Series Description Documents
Number of results: 4
Product descriptionOutput powerDischarge
WQ750SQG0.75 kwG 2.0"FPDF
WQ1100SQG1.10 kwG 2.0"FPDF
WQ1500SQG1.50 kwG 2.0"FPDF
WQ2200SQG2.20 kwG 2.0"FPDF


Series Description

  • WQ-SQG Series
    WQ-SQG Series
  • WQ-SQG Series

Design

Stainless steel submersible pumps with muli-channel openimpeller with grinding device on suction.


Application

Drainage of

  • Pump chamber and pump sump

  • Soakaway

  • Flooded basements


Liquid

For the pumping in household areas of:

  • Sevage without faeces

  • liquids containinglong fibres or filaments or solid destroyable

  • bodied even of big sizes


Materials

  • Pump housing (volute): AISI 304

  • Motor housing: GG20

  • Impeller: GG20

  • Shredding ring: AISI 440

  • Granding ring: AISI 440


Specifications

  • Liquid temperature:104°F (40°C) continuous

  • Motor: B insulation class, IP68 protection

  • Single phase: Build in thermal protector

  • Accessories: Float switch is available


Grinder Series

Grinder Series
