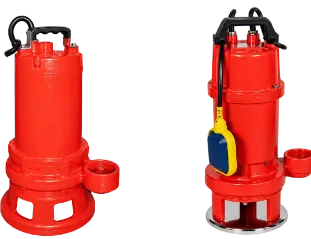

WQ-QG Series

  • Easy installation thanks to 10m power cable with plug.

  • Automatic operation through tethered float switch.

  • Operationally safe thanks to self-switching thermal motor monitoring.

WQ-QG Series
Product Selection Series Description Documents
Number of results: 2
Product descriptionOutput powerDischarge
WQ10-7-0.75QG0.75 kwG 2.0"FPDF
WQ10-7-1.1QG1.10 kwG 2.0"FPDF


Series Description

  • WQ-QG Series
    WQ-QG Series
  • WQ-QG Series

Design

Stainless steel submersible pumps with muli-channel open

impeller with grinding device on suction.


Application

Drainage of

  • Pump chamber and pump sump

  • Soakaway

  • Flooded basements


Liquid

For the pumping in household areas of:

  • Sevage without faeces

  • liquids containinglong fibres or filaments or solid destroyable

  • bodied even of big sizes


Materials

  • Pump housing (volute):GG20

  • Motor housing: GG20

  • Impeller: ZG35

  • Shredding ring: AISI 440

  • Granding ring: AISI 440


Specifications

  • Liquid temperature:104°F (40C) continuous

  • Motor: B insulation class, IP68 protection

  • Single phase: Build in thermal protector

  • Accessories: Float switch is available


Grinder Series

Grinder Series
